O.T. EQUIPMENTS

Aerosol Disinfector

MPH-444 Aerosol Disinfector This model, Ideally suited for decontamination of operation theatres, Wards in Hospitals & Nursing Homes, Pharmaceutical Labs & Production units, Animal housed and Poultry sheds, Hatcheries & EGG Storages, Silk worm rearing houses in sericulture industries etc. Instantly converts liquids formalin into true aerosol particles. Due to high aerodynamic stability the formalin droplets remain suspended in the atmosphere for longer duration and because of penetrating properly ensure 100% sterile germ free and Zero-Bacteria Environment. Eliminates the Cumbersome process involved in the conventional method of fumigation. Can be easily operated even by a ward-boy. A single unit can sterilize 250 cu. mtrs. about 9000 cu. ft. in just 30-60 minutes. Suitable to work on 220 V, Single Phase, 50 Hz, Ac Supply. Available in Aluminium and Stainless Steel body in following capacities. (A) 1.5 Litres (B) 5.0 Litres

OT FOGGER

MHP-445

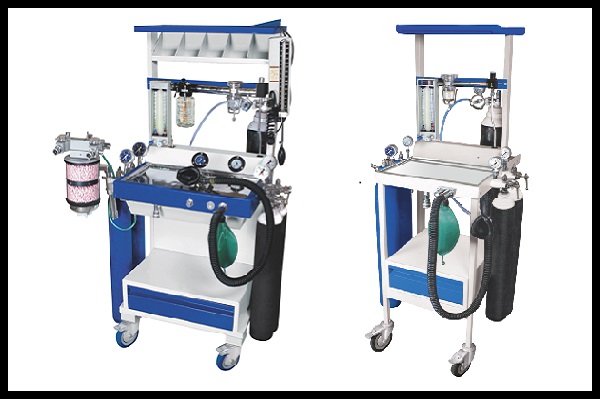

Anesthesia Machines

Anaesthesia Machine

MPH – 451 Anaesthesia Machine • Construction: Trolley made by tubular rigged steel section electrostatically powder coated or stainless steel • Suitable drawer for keeping anesthesia kit / accessories • Extended platform at rear for two 10 ltrs. (Water cap.) Cylinders • Small roller bearings, antistatic castors, for easy mobility and brakes • Top tray provided at eye level for keeping monitoring equipment • Hook for breathing circuit • Wipe clean stainless steel top • Unitized Rota meter block for oxygen & nitrous oxide with fine adjustment controls & color coated knob and luminous back plate. Oxygen flow meter calibrated from 100cc/min to 10 Itrs. Minute & Nitrous oxide flow meter from 200cc/min to 12 liters/min down Stream receipt of oxygen. • One gold man type vaporizer for halothane • Non return cum blow off valve in circuit ensures that pressure does not build-up beyond 200cm. Water column & minimises risk of back flow of gases. • 60 psl outlet for driving ventilator • Emergency Oxygen flush valve At table level to give 35-60 ltrs/min for emergencies • Cylinder yokes: Pin indexed yokes one each of oxygen & nitrous oxide • 50 mm diameter, color coded gauges fitted at convenient angle for better visibility & clarity • High efficiency regulators for reliability one each for O2 & N2o • One Magill’s or Bain circuit Height: 152cm Depth: 43cm Width: 55cm Weight App.: 36kg

Anesthesia Machine

MPH – 446 Anesthesia Machine Construction: Steel electrostatically powder coated or stainless steel. • Capacious drawer for keeping anaesthesia kit/accessories. • Extended platform at rear for two 10 ltrs. (Water Cap.) cylinders. • Large roller bearings, antistatic castors, for easy mobility and brakes. • Top tray provided at eye level for keeping monitoring equipments. • Hook for breathing circuit. • Wipe clean stainless steel top. • Provision to fit ventilator. • Convenient mounting of circle absorber (Optional). • Emergency drug tray fitted at convenient place. • Unitised rota meter block for oxygen & nitrous oxide with fine adjustment controls & colour coated knob and luminous back plate. Oxygen flow meter calibrated from 100cc/min to 10 Itrs./ Minute & Nitrous oxide flow meter from 200cc/min to 12 liters/min down Stream receipt of oxygen & (air 0 to 12 ltrs. optional) • One plenum type vaporizer for ether (optional) & one gold man type vaporizer for halothane, provision to mount three vaporizer at a time • Non return cum blow off valve in circuit ensures that pressure does not huld-up beyond 200cm. Water column & minimises risk of back flow of gases. • 60 psl outlet for driving ventilator. • Change over system open circuit or close circuit. • Emergency Oxygen flush valve at table level to give 35-60 ltrs/min for emergencies • Cylinder yokes: Pin indexed yokes two each of oxygen & nitrous oxide • 63 mm diameter, colour coded gauges fitted at convenient angle for better visibility & clarity, one gauge for 02 & one gauge for N20 shown the line pressure • High efficiency regulators for reliability two each for O2 & N2O • One Maggill's or Bain circuit • One B.P Apparatus. Safety Features: • Hypoxic guard • Emergency oxygen flush • Alarm to provide audible indication of O2 supply pressure failure • Nitrous oxide shut off in the event of O2 failure Height: 150cm Depth: 68cm Width: 78cm Weight App. 60kg

Anesthesia Machine

MPH – 447 Anaesthesia Machine • Construction: Trolly made by tublar riged steel section electrostatically powder coated or stainless steel • Suitable drawer for keeping anaesthesia kit/accessories • Extended platform at rear for two 10 Ltrs. (Water cap.) cylinders • Small roller bearings, antistatic castors, for easy mobility and brakes • Top tray provided at eye level for keeping monitoring equipments • Hook for breathing circuit • Wipe clean stainless steel top • Unitised rota meter block for oxygen & nitrous oxide with fine adjustment controls & colour coated knob and luminous hack plate. Oxygen flow meter calibrated from 100cc/min to 10 ltrs. / Minute & Nitrous oxide flow meter from 200cc/min to 12 liters / min down Stream receipt of oxygen • One gold man type vaporizer for halothene, provision to mount two vaporizers at a time • Non return cum blow off valve in circuit ensures that pressure does not build-up beyond 200cm. water column & minimises risk of back flow of gases. • 60 psl outlet for driving ventilator • Emergency Oxygen flush valve At table level to give 35-60 ltrs./min for emergencies • Cylinder yokes: Pin indexed yokes two each of oxygen & nitrous oxide • 50mm diameter, colour coded gauges fitted at convenient angle for better visibility & clarity • High efficiency regulators for reliability two each for O2 & N2o • One Maggill's or Bain circuit Safety Features: • Emergency oxygen flush • Alarm to provide audible indication of O2 supply pressure failure • Nitrous oxide shut off in the event of O2 failure Height: 152cm Depth: 60cm Width: 65cm Weight App. 45kg

Portable Anaesthesia Machine

MPH – 448 Portable Anaesthesia Machine • Construction: trolly made by tublar riged steel section electrostitatically powder coated or stainless steel • Suitable drawer • Unitised rota meter block for oxygen & nitrous oxide with fine adjustment controls & colour coated knob and luminous back plate. • Oxygen flow meter calibrated from 100cc/min to 10 Itrs. / Minute & Nitrous oxide flow meter from 200cc/min to 12 liters/min down Stream receipt of oxygen • One gold man type vaporizer for halothene • Non return cum emergency oxygen unit with blow off valve in circuit ensures that pressure does not build-up beyond 200cm. water column & minimize risk of back flow of gases. • Two pre set regulators (forged quality) one each for O2 & N2O with high pressure tubing non inter changeable for connection with flow meter inlet • One Maggill's & bain circuit Height: 40cm Depth: 18cm Width: 30cm Weight App. 10kg

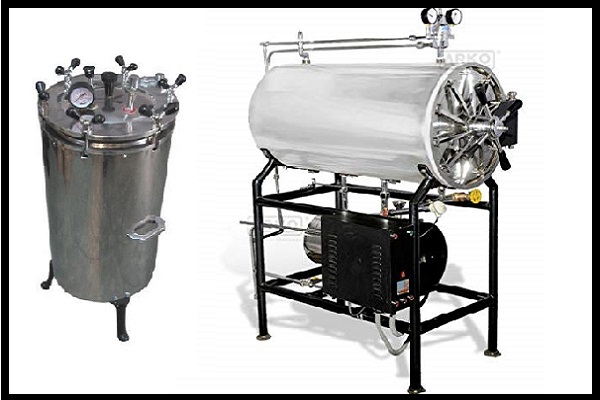

High Pressure Steam Strilizer

Cooker Type Autoclave (Portable) Single/Double Drum S.S. Electric

MPH-439 Cooker Type Autoclave (Portable) Single/Double Drum S.S. Electric Seamless construction made of S.S. with turning on lid highly polished. It comes with one stop cock (continues bleeding valve), safety valve and pressure gauge. Size: 12"x14", 12"x22" Available in electric and non-electric Also available with semiautomatic (Timer Based) All sizes are approximate

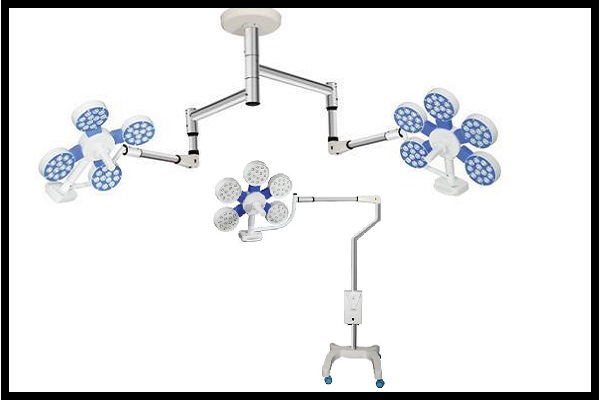

O.T. Lights

(LED Light) Adjustable Colour Temperature

MPH - 408 (LED Light) Adjustable Colour Temperature Memory Function, High quality sterilizable handle, with protective ?re resistant ESG safety glass for scratch proof, fast disinfection process, protects UV and IR rays and improves light penetration with special European design for ventilation of heat. Body is made of high quality ?re resistant polymer. Technical Data: Intensity : 90,000 + 90,000 Lux ± 10% Size of Light Field : 12-30 cm Colour Temperature : 4000-5000 K Colour Reduction Index : 93 RA LED Life : >50000 Hrs. Number of LED : 63 Diameter of Light : 500mm Brightness Control : Capacitive Touch Panel Power Supply : 220V/50Hz AC Focusing : Adjustable Battery Backup : Optional

(LED Light) Adjustable Colour Temperature

MPH - 409 (LED Light) Adjustable Colour Temperature Memory Function, High quality sterilizable handle, with protective ?re resistant ESG safety glass for scratch proof, fast disinfection process, protects UV and IR rays and improves light penetration with special European design for ventilation of heat. Body is made of high quality ?re resistant polymer. Technical Data: Intensity : 80,000 + 1,10,000 Lux ± 10% Size of Light Field : 12-30 cm Colour Temperature : 4000-5000 K Colour Reduction Index : 93 RA LED Life : >50000 Hrs. Number of LED : 57 + 76 Diameter of Light : 500mm x 2 Brightness Control : Capacitive Touch Panel Power Supply : 220V/50Hz AC Focusing : Adjustable Battery Backup : Optional

(LED Light) Adjustable Colour Temperature

MPH - 410 (LED Light) Adjustable Colour Temperature Memory Function, High quality sterilizable handle, with protective ?re resistant ESG safety glass for scratch proof, fast disinfection process, protects UV and IR rays and improves light penetration with special European design for ventilation of heat. Body is made of high quality ?re resistant polymer. Technical Data: Intensity : 1,40,000 + 1,10,000 Lux ± 10% Size of Light Field : 12-30 cm Colour Temperature : 4000-5000 K Colour Reduction Index : 93 RA LED Life : >50000 Hrs. Number of LED : 95 + 76 Diameter of Light : 500mm x 2 Brightness Control : Capacitive Touch Panel Power Supply : 220V/50Hz AC Focusing : Adjustable Battery Backup : Optional

Halogen Light

MPH - 400 (Halogen Light) Specifications: Dome : 1 Dome Diameter : 19 " ~ 480 mm Reflector : Aluminum / Dichroic Intensity : 50000 Lux (A) / 750000 Lux (D) Color Temp. : 4300 K (A) CRI : 93(Dichroic) Variable Light Intensity : 3 stages Bulb specification : 24v - 70w x 4 Power : AC 230V

Halogen Light

MPH - 403 (Halogen Light) Specifications: Dome : 1+1 Dome Diameter : 19 " ~ 480 mm Reflector : Aluminum / Dichroic Intensity : 50000 Lux (A) / 750000 Lux (D) Color Temp. : 4300 K (A) CRI : 93(Dichroic) Variable Light Intensity : 3 stages Bulb specification : 24v - 70w x 4 Power : AC 230V Battery Backup : Optional

Halogen Light

MPH - 404 (Halogen Light) Specifications: Dome : Fiber / Aluminum Dome Diameter : 19 " ~ 480 mm Reflector : Aluminum / Dichroic Intensity : 50000 Lux (A) / 750000 Lux (D) Color Temp. : 4300 K (A) CRI : 93(Dichroic) Variable Light Intensity : 3 stages Bulb specification : 24v - 70w x 4 Power : AC 230V UPS System : Optional

Halogen Light

MPH - 400 (Halogen Light) Specifications: Dome : 7 + 4 Dome Diameter : 20 " ~ 510 mm Reflector : Aluminum / Dichroic Intensity : 50000 Lux (A) / 100000 Lux (D) Color Temp. : 4300 K (A) CRI : 93(Dichroic) Variable Light Intensity : 3 stages Bulb specification : 24v - 70w x 4 Power : AC 230V Battery Backup : Optional

Halogen Light - Twin Fiber Dome Light

MPH – 399 (Halogen Light - Twin Fiber Dome Light) Specifications: • Dichroic Reflector • Heat Absorbing & color correcting Filter. • Switch Mode Power Supply (SMPS). • Digital Control panel for Intensity control. • Automatic switch over to reserve bulb, If the first bulb fails with an indicator. • Lux: 1, 20,000 Lux each dome.

LED Light

MPH - 406 (LED Light) With protective ?re resistant ESG safety glass for scratch proof, fast disinfection process, protects UV and IR rays and improve light penetration with special European design for ventilation of heat. Body is made of high quality ?re resistant polymer. Technical Data: Intensity : 45,000 Lux ± 10% Size of Light Field : 12-30 cm Color Temperature : 4800 K Color Reduction Index : 93 RA LED Life : > 50000 Hrs. Number of LED : 19 Diameter of Light : 500 mm Power Supply : 220V / 50Hz AC Focusing : Adjustable Battery Backup : Optional

LED Light Adjustable Colour Temperature

MPH - 407 (LED Light) Adjustable Colour Temperature Memory Function, High quality sterilizable handle, with protective ?re resistant ESG safety glass for scratch proof, fast disinfection process, protects UV and IR rays and improves. Technical Data: Intensity : 90,000 + 90,000 Lux ± 10% Size of Light Field : 12-30 cm Colour Temperature : 4000-5000 K Colour Reduction Index : 93 RA LED Life : >50000 Hrs. Number of LED : 63 + 63 Diameter of Light : 500mm x 2 Brightness Control : Capacitive Touch Panel Power Supply : 220V/50Hz AC Focusing : Adjustable Battery Backup : Optional (Easily detachable connector based OT Light/Optional)

LED O.T. Light

MPH - 405 (LED Light) With protective ?re resistant ESG safety glass for scratch proof, fast disinfection process, protects UV and IR rays and improve light penetration with special European design for ventilation of heat. Body is made of high quality ?re resistant polymer. Technical Data: Intensity : 45,000 Lux ± 10% Size of Light Field : 12-30 cm Colour Temperature : 4800 K Colour Reduction Index : 93 RA LED Life : > 50000 Hrs. Number of LED : 19 Diameter of Light : 500 mm Power Supply : 220V / 50Hz AC Focusing : Adjustable Battery Backup : Optional

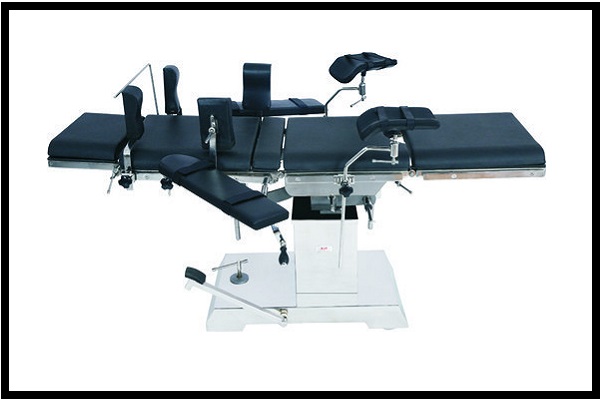

O.T. Tables

O.T. TABLE SUPER HYDRAULICS

MPH-397 A Universal hydraulic operating table is specially designed to provide complete flexibility for patient positioning required for modern Surgeries. This table is constructed of stainless steel and other high quality materials. FEATURES: • Five sectional stainless steel top which gives ease various surgical positions. • UP & DOWN by Hydraulic System. • Standard Positioning: Height UP/DOWN, Trendelenberg / Reverse Trendelenberg, Lateral tilt sides, Flex / Reflex, Chair, Kidney elevation through drive handles. • Base and column covered with S.S. Top to ensure high durability and Hygiene for the operation room. • Mobile on Smooth run STANDARD ACCESSORIES: • Five section mattress - 1 set • Anesthetist Screen - 1 Pcs. • Padded Shoulder supports -2 Pcs. • Padded Lateral Support-2 Pcs. • Padded Lithotomy Crutches-2 Pcs. • Padded Arm Rest - 2 Pcs. • Drive Handle - 1 Pcs.

Operating Tables C-arm Compatible (hydraulic)

MPH-398 Operating Tables C-arm Compatible (hydraulic) • Four Sections Radiolucent top. • C-Arm compatible inbuilt kidney bridge. • Eccentrically positioned top for maximum access for movement of C-Arm image intensifier. • Heavy & sturdy T shaped base allowing maximum foot room for operating team • Mobile on smooth running castors & Floor locking system for stability • Heavy & Hygienic stainless steel Covered base and lifting column • All the fittings, side rails and accessories made of stainless steel. • Accessories clamps made of Stainless Steel. STANDARD POSITIONING: • Hydraulic UP / DOWN • Precise and efficient crank mechanism to obtain trendelenberg / reverse trendelenberg, • Lateral tilts both sides, • Flex & Reflex, & Chair • Detachable, adjustable and interchangeable head & leg sections • Also Available with Kidney Bridge Position with Radiolucent top. (C-Arm compatible operating table for Orthopaedic with Leg Traction unit attached to the base)

OPERATION THEATER TABLE (ELECTRIC OPERATION TABLE)

MPH-399 OPERATION THEATER TABLE (ELECTRIC OPERATION TABLE) C-ARM COMPATIBLE OPERATING TABLE (HYDRAULIC) • Inner thigh support for lateral position • Arm Support Carter Braine with pad (Adjustable) for lateral positioning (Optional) • Knee Rest for tibia and fibula position / Orthoscopic position • Lateral Cassette Holder (Optional) • Pelvic rest (adjustable) at extreme right • • Steinmann Pin Clamp • Pelvic rest (adjustable) positioned at extrement left • X-ray translucent, C-Arm Compatible. • Hand operating table with mattress and telescopic support STANDARD ACCESSORIES: • Five section mattress - 1 set • Anesthetist Screen - 1 Pcs. • Padded Shoulder supports -2 Pcs. • Padded Lateral Support-2 Pcs. • Padded Lithotomy Crutches-2 Pcs. • Padded Arm Rest - 2 Pcs. • Drive Handle - 1 Pcs.

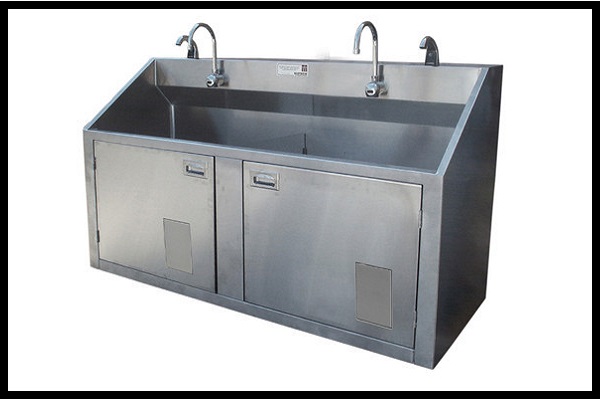

Scrub Statio

MPH-457 Scrub Station • Scrub station wall mounted , made of heavy duty Stainless Steel 304 grade Supplied. • The Station are available in the following options: SIZE IN (MM) USER TAP 900Lx550Wx600D mm One Elbow Operated 1200Lx550Wx600D mm Two Elbow Operated 1500Lx550Wx600D mm Three Elbow Operated 1800Lx550Wx600D mm Four Elbow Operated

Scrub Station Automatic

MPH-458 Scrub Station Automatic • Scrub station stand / wall mounted , made of heavy duty Stainless Steel 304 grade Supplied with Automatic Sensor & foot, Elbow operated. • The Station are available in the following options: SIZE IN (MM) USER TAP 900Lx550Wx600D mm One Elbow Operated 1200Lx550Wx600D mm Two Elbow Operated 1500Lx550Wx600D mm Three Elbow Operated 1800Lx550Wx600D mm Four Elbow Operated

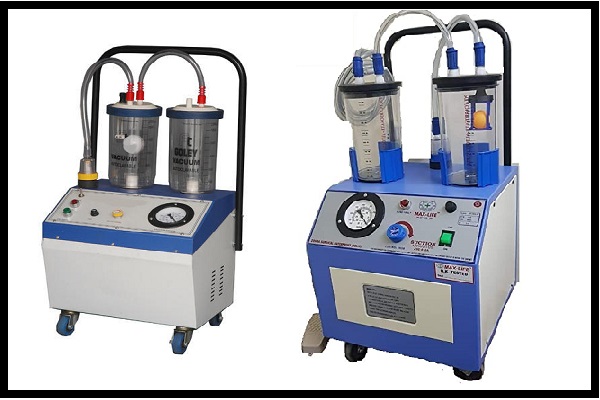

Suction Machines

Instad Portable Suction Unit

MPH-449 Instad Portable Suction Unit AC / DC - DC – AC Main Applications • Hospital Crash Cart • Patient Transfer • Long Term Home Care • EMS/Ambulance • Bed Side InstaD DC • EMS/Ambulance • Bed Side

Pedal Suction Apparatus

MPH – 448 Pedal Suction Apparatus Pedal suction apparatus mainly used in hospital of all levels for suctions of blood, phlegm and other thick liquids.

Univac -0.25 H.P Suction Apparatus

MPH-447 • Ward care Suction Unit • Powder Coated MS chassis • Noise level of suction apparatus is 50 dB ± 03 dB • Electrical requirement - 220 ~230 VAC, 50 Hz, 1 Phase • Ideal for medical & surgical procedures • Rotary Vane or Diaphragm Vacuum Pump with - 710 ± 10mm Hg • Free air displacement 25 ~ 30 ltrs / min • Heavy duty HN - 50 antistatic castors • 180 Watt, 1440 RPM, 0.25 H.P. Electric Motor • 76 mm Vacuum Gauge • Non collapsible PVC tubing • 2 x 1.5 Ltrs Polycarbonate jars with overflow safety • Bacterial filter fitted on top • All parts coming into contact with secretion are autoclave safe

Ward care Suction Unit 0.50HP

MPH-443 Univac - 0.50 H.P Suction Apparatus • Powder coated M.S. chassis • Noise level of suction apparatus from is 50 dB +/-03 dB • Leakage current of suction units is less than 84 uA • Electrical requirement -220 ~ 230V, 50Hz, 1 Phase • Ideal for MTP / Medical / Surgical procedures • Rotary Vane Type Vacuum Pump with - 740 +/- 10mm Hg • Free air dispacement 40 ~ 60 ltrs / MIN • Heavy duty HN - 65 antistatic castors • 320 Watt, 1440 RPM , 0.50 H.P. Electric Moto • 100 mm Vacuum Gauge • Non collapsible Silicon tubing • 2 x 2.0 Ltrs. Polycarbonate jars with overflow sagety • Bacterial filter fitted on top

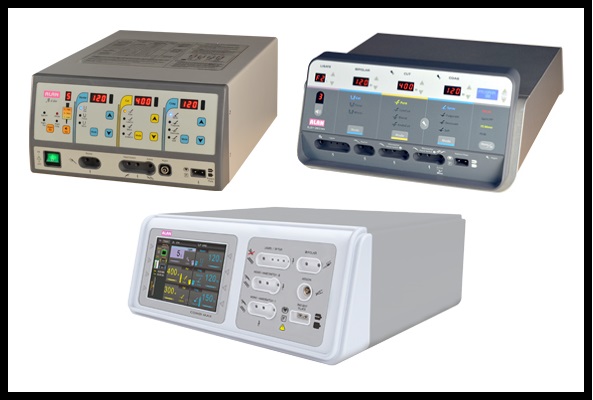

Surgical Diathermy/Cautery

Alan Surgical Diathermy COMBIMAX SERIES MBAVP

COMBIMAX SERIES MBAVP General Technical Specification: • 1 Ligate (Vessel Seal) • 1 Bi-TUR (Bipolar Saline Resection) • 1 Argon outlet • Argon Enhanced Cut and Coag • 2 Monopolar • 1 Bipolar • Maximum Power output 400 watts • EndoCut • Randomized Spray • Auto Start and Auto Stop Bipolar • Auto Stop Monopolar Coagulation • Simultaneous Coagulation • Adaptive Patient Plate Contact Quality Monitor • 98 PER • Defibrillator Proof Output (CF) • Less than 8 Kg (portable) General Features: • Advanced Electro Surgical Generator / Electro Cautery / Electro Diathermy with standard Monopolar and Bipolar outputs and other most advanced functions / Modes like Vessel Sealing, Bi-TUR, and Argon Plasma Coagulator etc in a single unit. • Can Seal up to 7mm Vessels, and average sealing time is 4 Sec. • High efficient Bi-TUR system generates plasma instantly around the loop and results smooth and effectless resection. • Argon Enhanced coagulation offers quik and efficient coagulation, a thinner more flexible eschar, less charring, less tissue damage and faster post recovery • Independent Argon Setting for Cut and Coag • Dual Argon Cylinder Connectivity for redundant operation • 199 User settable profiles store all user preferences like Mode, Power, Footswitch, Surgeon name and procedure name etc. • User friendly touch screen interface • Isolated Monopolar & Bipolar outputs • Built in stabilizer • Wide angle colour LCD touch screen display • Auto start, Auto stop coagulation in bipolar • Patient Plate, HF Leakage, RF activation etc. are monitored in real time for maximum patient safety • Simultaneous coagulation facility in monopolar • Independent different settings for 2 monopolar outputs • User settable maximum RF activation timeout limit • Graphical patient plate contact quality indication • Digital volume control and audible & visual alarm • Single touch switch over from one mode to another mode • Randomized spray ON/OFF control in monopolar coagulation • User settable brightness & contrast control for LCD to improve visibility • Optional provision to connect footswitch for each monopolar port • Suitable for all under water, Laparoscopic & open surgeries • Works on Generator, Inverter & UPS

Alan Surgical Diathermy Elsy - 360 Series

Elsy - 360 Series General Technical Specification: • 1 Ligate (Vessel Seal) • 2 Monopolar • 1 Bipolar • Maximum Power output 400 watts • EndoCut • Randomized Spray • Auto Start and Auto Stop in Bipolar • Auto Stop in Monopolar Caogulation • Simultaneous Coagulation • Adaptive Patient Plate Contact Quality Monitor • 98 PER • Defibrillator Proof Output (CF) • Less than 6 Kg (portable) General Features: • Advanced Electro Surgical Generator / Electro Cautery / Electro Diathermy with standard Monopolar and Bipolar outputs and other most advanced functions / Modes like Vessel Sealing, EndoCut in a single unit. • Can Seal up to 7mm Vessels, and average sealing time is 4 Sec. • 99 User settable profiles stores all user preferences like Mode, Power etc. • Isolated Monopolar & Bipolar outputs • Individual Digital display for program, Ligate, Monopolar & Bipolar • Built in stabilizer • Auto stop Monopolar Coagulation • Auto start, Auto stop Coagulation in bipolar • Patient Plate, HF Leakage, RF activation etc. are monitored in real time for maximum patient safety • Simultaneous coagulation facility in monopolar • User settable maximum RF activation timeout limit • Adaptive patient plate contact quality monitor for maximum patient safety • Digital volume control and audible & visual alarm • Randomized spray ON/OFF control in monopolar coagulation • Suitable for all under water, Laparoscopic & open surgeries • Works on Generator, Inverter & UPS

ALAN SURGICAL DIATHERMY Lite Series

Lite Series General Technical Specification: • 1 Monopolar • 1 Bipolar • 1 Argon outlet • Argon Enhanced Cut and Coag • Maximum Power output 400 watts • EndoCut, Spray Coagulation • Auto Stop Bipolar • Simultaneous Coagulation • Patient Plate Contact Quality Monitor • 98 PER • Defibrillator Proof Output (CF) • Less than 4.5 Kg (portable) General Features: • Advanced Electro Surgical Generator / Electro Cautery / Electro Diathermy with standard Monopolar, Bipolar outputs and Argon Plasma Coagulator etc in a single unit • Argon Enhanced coagulation offers quik and efficient coagulation, a thinner more flexible eschar, less charring, less tissue damage and faster post recovery • Isolated Monopolar & Bipolar outputs • Built in stabilizer • Auto Stop coagulation in bipolar • Patient Plate, HF Leakage, RF activation etc. are monitored in real time for maximum patient safety • User settable maximum RF activation timeout limit • Patient plate contact quality monitor for maximum patient safety • Digital volume control and audible & visual alarm • Suitable for all under water, Laparoscopic & open surgeries • Works on Generator, Inverter & UPS
